OpenFL HTML5 Target overly zoomed/scaled on High-DPI devices

Questions
1

I’m working on a dialogue editor using the openfl backend and when I target html5, the UI is very zoomed in on high DPI devices ( ie: surface pro ):

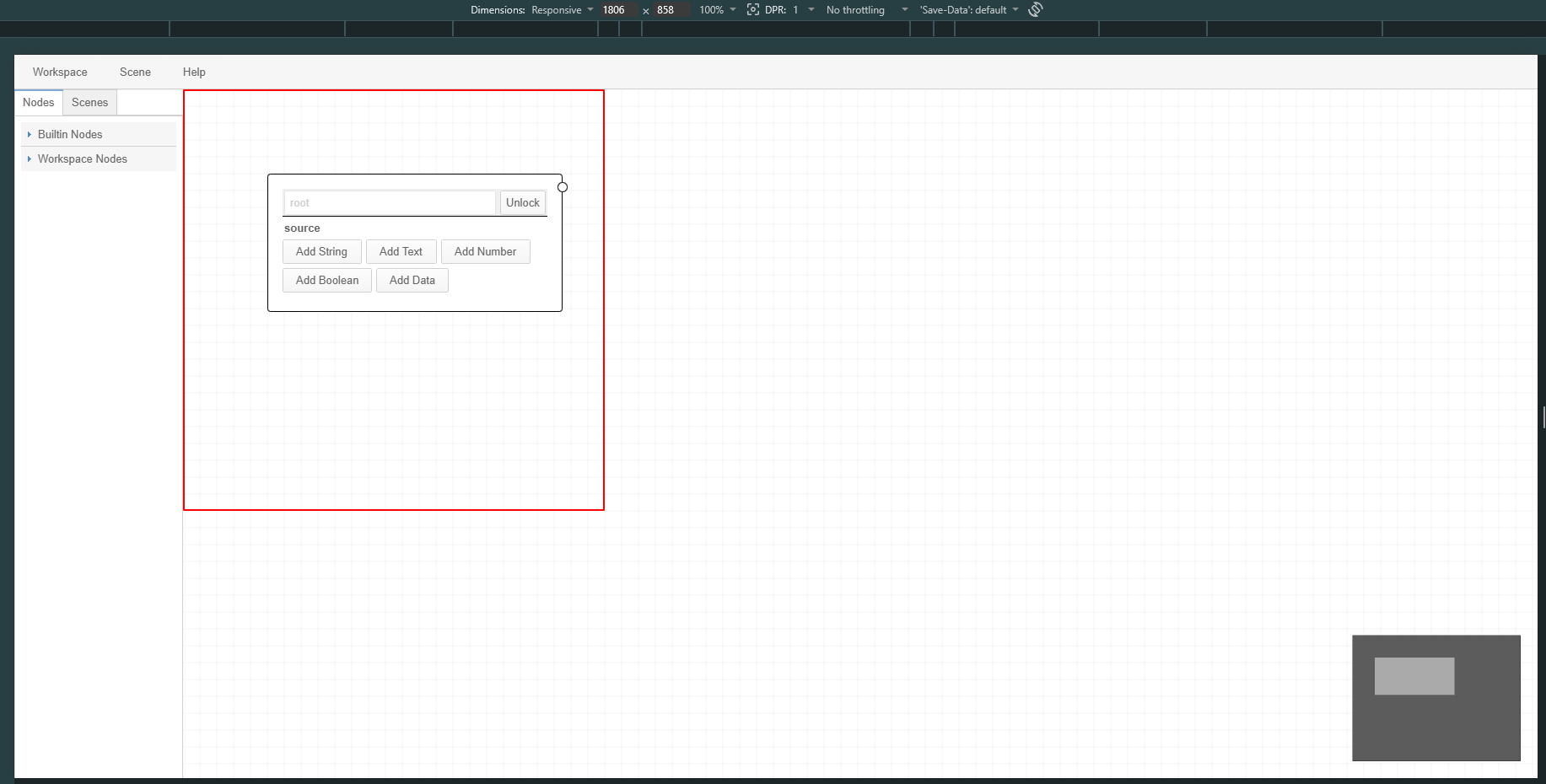

normal:

image1833×930 14.7 KB

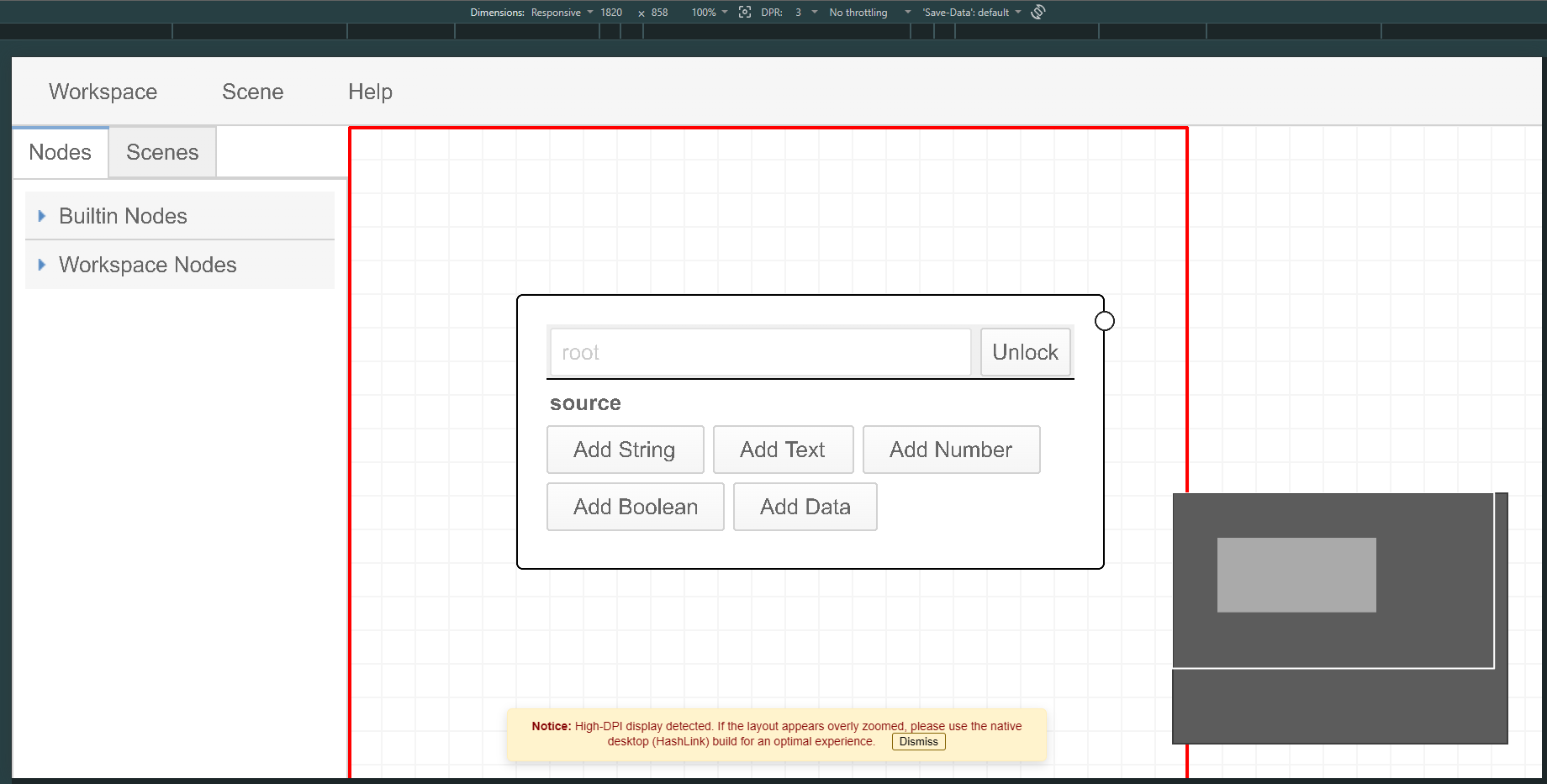

DPR 2 or 3:

image1830×930 38.1 KB

I’ve tried manually setting the toolkit scale using:

haxe.ui.Toolkit.scaleX = 1.0;
haxe.ui.Toolkit.scaleY = 1.0;

editing the project.xml to allow and reject high dpi but to no avail, so I was wondering if anybody has encountered this kind of issue before.

editor online here, if you inspect element and change the dpr to either 2 or 3 and refresh you should see the issue.
source here

Thanks!

2

Is there are Toolkit.scale that works? usually haxeui tries to detect hdpi displays, but maybe on openfl that isnt working so well.

1 Like
3

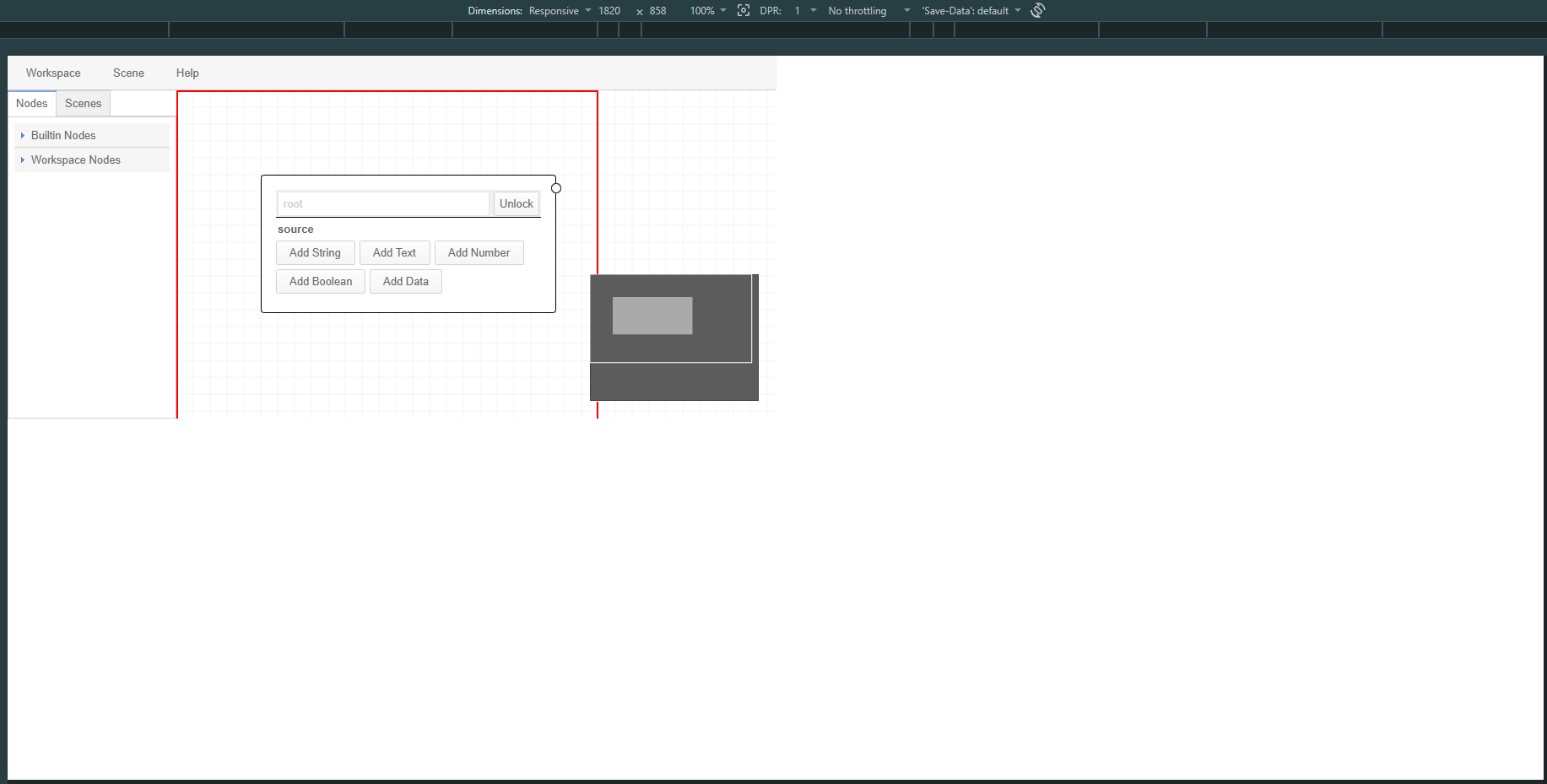

So if I apply ie: toolkit.scale = 2 with DPR 1 I get the following ( app only takes up a portion of the screen but its UI elements stay the correct size ):

image1833×929 13.8 KB

however with DPR 2 or 3 it has the same issue UI component scaling issue however it does take up the full screen

image1840×933 37.6 KB

4

Hello!
Actually forcing Toolkit.scale to 1 for JS did indeed fix the issue, just needed to add it earlier in my main.hx, thank you.
